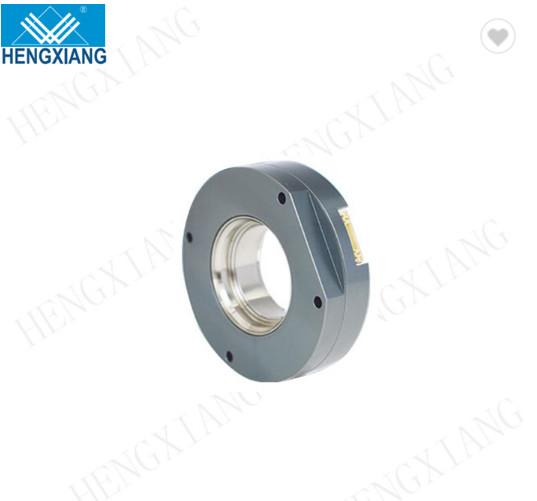

Absolute Parallel Micro Single Turn RS485 SSI BISS Multi Turn 23 Bits Encoder

  • 1
  • 2
  • 3

Brand Name : HENGXIANG

Model Number : MPN55

Certification : CE,ISO9001

Place of Origin : Shanghai,China

MOQ : 1pcs encoder to start order

Price : negotiable

Payment Terms : D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc

Supply Ability : 100K pieces per year

Delivery Time : 3-5 working days for sample order, 7-15 working days for mass order

Packaging Details : each 1 piece was packed into single carton box

Encoder type : Absolute encoder

External diameter : 55mm（Mounting flange 65mm）

Hollow shaft diameter : THROUGH HOLE 14mm; 15mm; 19mm; 20mm; 24mm

Resolution : single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit; multi-turn: 1716=17+16Bit, 1916=19+16Bit,2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit

Interface : E=SM08B-GHS-TB ；J=radial cable

Communication : B=BISS-C; S=SSI

Electrical connection : R=RS-485

Output mode : M=multi-turn; S=single-turn

Protection : IP50

Allowable speed : ≤32200 r/min (restricted by mechanical speed limit)

Contact Now

Absolute patallel micro single-turn RS-485 SSI BISS multi-turn 23 Bits encoder

1. Feature: single-turn multi-turn, flange encoder, SSI BiSS, RS-485 interface, 14-24mm hollow shaft

2. Application: Servo Motor, robot and other industrial automation field.

3. Important parameter: Resolution up to 24 bit, protection grade IP50.

Basic Paramenters
Items
Basic parameters
Brand
Hengxiang
Encoder type
Absolute encoder
External diameter
55mm(Mounting flange 65mm)
Thickness
15mm
Hollow shaft type
Through hole
Hollow shaft diameter
14mm; 15mm; 19mm; 20mm; 24mm
Resolution
single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit
multi-turn: 1716=17+16Bit, 1916=19+16Bit,
2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
Interface
E=SM08B-GHS-TB ；J=radial cable
Communication
B=BISS-C; S=SSI
Electrical connection
R=RS-485
Output mode
M=multi-turn
S=single-turn
Scanning principle
Reflective grating code
Accuracy
±80"
Response speed
Normal action: 6000min-1
RMS position signal noise
±2@18 bits/r
Communication clock frequency
≤10MHz(BISS) or ≤ 5MHz(SSI)
Starting time
typical value: 13ms
Absolute position sampling period
≤75 ns
Allowable speed
≤32200 r/min (restricted by mechanical speed limit)
Cable
Differential twisted-paired cable
Cable length
200mm-10000mm
Mechanical Connection
With bearing& encircled locking shaft
Starting Torque
less than 9.8×10-3 N.m
Inertial moment
less than 6.5×10-6 kg.m2
Shaft load
Radial 30N; Axial 20N
Slew speed
≤6000rpm
Shell Material
Aluminum
Environmental temperature
Operating: -20~+95℃; Storage: -25~+100℃
Environmental humidity
Operating and storage: 35~85%RH(Noncondensing)
Vibration
Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually
Shock
980m/s2 11ms, three times for X,Y,Z direction individually
Protection
IP50
Net weight
About 150g

Product Description
Absolute Parallel Micro Single Turn RS485 SSI BISS Multi Turn 23 Bits Encoder
Absolute Parallel Micro Single Turn RS485 SSI BISS Multi Turn 23 Bits Encoder
Absolute Parallel Micro Single Turn RS485 SSI BISS Multi Turn 23 Bits Encoder
Absolute Parallel Micro Single Turn RS485 SSI BISS Multi Turn 23 Bits Encoder
Why Choose Us
Absolute Parallel Micro Single Turn RS485 SSI BISS Multi Turn 23 Bits Encoder
Certifications
Absolute Parallel Micro Single Turn RS485 SSI BISS Multi Turn 23 Bits Encoder
Customers' Feedback
Absolute Parallel Micro Single Turn RS485 SSI BISS Multi Turn 23 Bits Encoder
FAQ
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
