Mini Servo Motor Encoder ABZUVW Phase OIH48 - 1024P6L65v Encoder K48

Name: Mini Servo Motor Encoder ABZUVW Phase OIH48 1024P6L65v Encoder K48
Brand: HENGXIANG
Price: 1 USD

China Mini Servo Motor Encoder ABZUVW Phase OIH48 - 1024P6L65v Encoder K48 factory

Brand Name : HENGXIANG

Model Number : K48-J servo encoder

Certification : CE,ISO9001

Place of Origin : Shanghai,China

MOQ : 1 piece to start order

Price : negotiable

Payment Terms : Western Union, MoneyGram, T/T, D/P, D/A, L/C

Supply Ability : 100K pieces per year

Delivery Time : 1-3 working days for sample, 7 -10 days for mass production

Packaging Details : each piece will be packed by one single carton box, safety package before shipment

Encoder Type : Servo motor encoder

Through hole shaft diameter : 8mm/10mm/12mm

Thickness : 34mm

Resolution : 50ppr(Min) to 8192ppr(Max)

Optional supply voltage : DC5V & DC8-30V

Shaft load : Radial 50N; Axial 30N

Outlet type : Wire out from side

package : Carton box

Contact Now

Servo motor special encoder ABZUVW phase OIH48-1024P6L65v encoder K48

Our advantage

More than 20 years experienced engineers
Professional working team
Over 18 years encoder production experience
High quality standard
Quick Response time
Utility Model Patent Certificate
Own brand and unique brand
CE certification for all models
Prompt delivery date
100% full inspection before shipment

Part Number of K48 Incremental Encoder

K48-J12C1000/4Q6

K48-J12E1000/6Q8

K48-J12C2000/4Q10

K48-J12C25000/4Q10

K48-J12C1000/6B6

K48-J12E2000/8B8

K48-J12E4096/8B10

K48-J12E4096/6B12

K48-J12C2500/16Q10

K48 Encoder Product introduction

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Incremental encoder

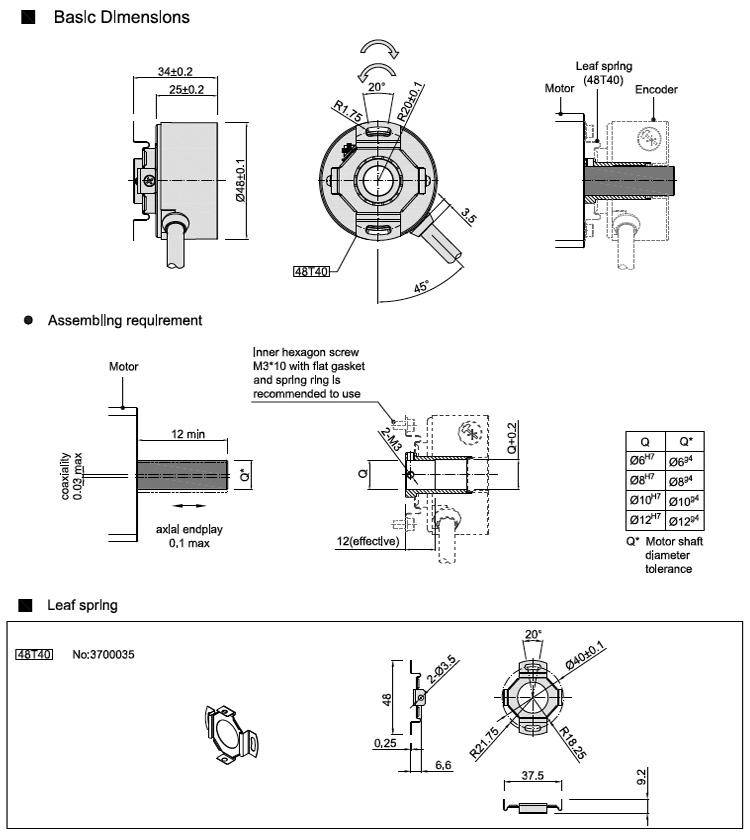

External diameter	48mm
Thickness	34mm
Installation dimension	40mm(spring plate 48T40)
Hollow shaft type	through hole or blind hole
Hollow shaft diameter	6mm,8mm,10mm,12mm
Resolution	50;60;100;200;250;256;300;360;400;450;500;512;600;1000; 1024;1200;2000;2048;2500; 4096;5000;8192
Resolution	1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2000/4； 2000/6；2000/8；2048/4；2048/6;2048/8；2500/4；2500/6；2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8;8192/4; 8192/6;8192/8
Output phase	Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage	DC5V ; DC8--30V
Outlet type	Cable out from side
Output mode	NPN/PNP(Open Collector Output)
	Voltage output
	Push-pull output
	line drive (26LS31) TTL
	line drive(DC8-30V) HTL
	TTL(DC5V) phase ABZ are back of phase UVW
Protection grade	IP40
Cable length	500mm
Consumption current	100mA MAX
Top response frequency	300KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
Insulation strength	AC500V 60s

Technical Theory of encoder/

Today most incremental encoders have a Push-Pull (HTL) or RS422 (TTL) output driver, these have replaced most of the older output circuits like Open Collector NPN, Open Collector PNP, Voltage Output.

Push-Pull (HTL) circuits, also known as Totem Pole, provide a signal level which corresponds to the applied supply voltage. The supply voltage typically ranges from 8 to 30 VDC.

With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.

The differential outputs have the highest frequency response capability and the best noise immunity. To ensure this the receiver should also be a differential.

Replacement of Older Output Drivers
